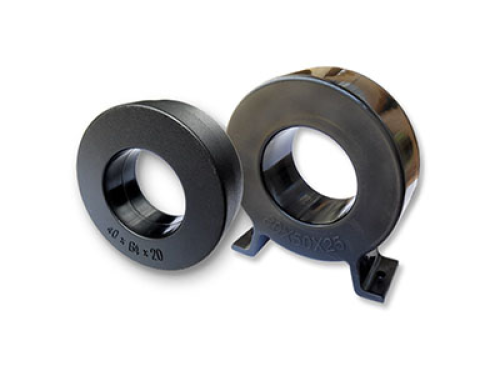

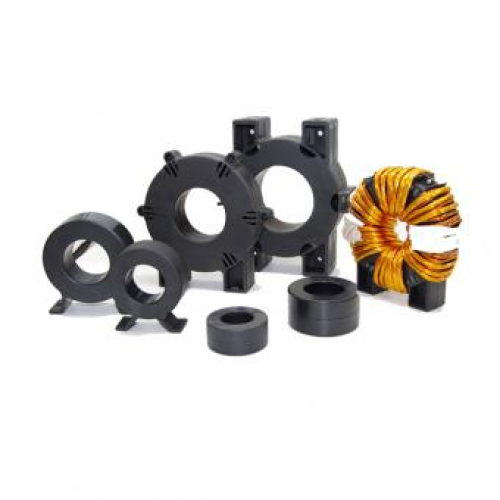

Nano Crystalline Switch Hi-Power Transformer Core (Iron Based)

A Nano Crystalline Switch Hi-Power Transformer Core (Iron-Based) is a type of transformer core material made from nano-crystalline alloys, typically iron-based. This material is designed for high-performance transformers, offering superior magnetic properties and efficiency. Nano crystalline cores are known for their low core loss, high saturation flux density, and low coercivity, making them ideal for high-power, high-frequency applications. These cores are particularly effective in reducing energy losses and improving the overall performance of transformers in electrical systems.

Usually the Hi-power are welding inverter’s single-ended pulse transformers require the transformer cores with low high frequency loss, high Bs and low Br so that to achieve bigger AB. Output filter and enengy stored inductance required the characteristics of high Bs, low loss and constant permenbility, in this case, we made horizontal magnetic treatment on Nano-crystalline alloy to manufacture the transformer cores with low Br and constant permeability.
